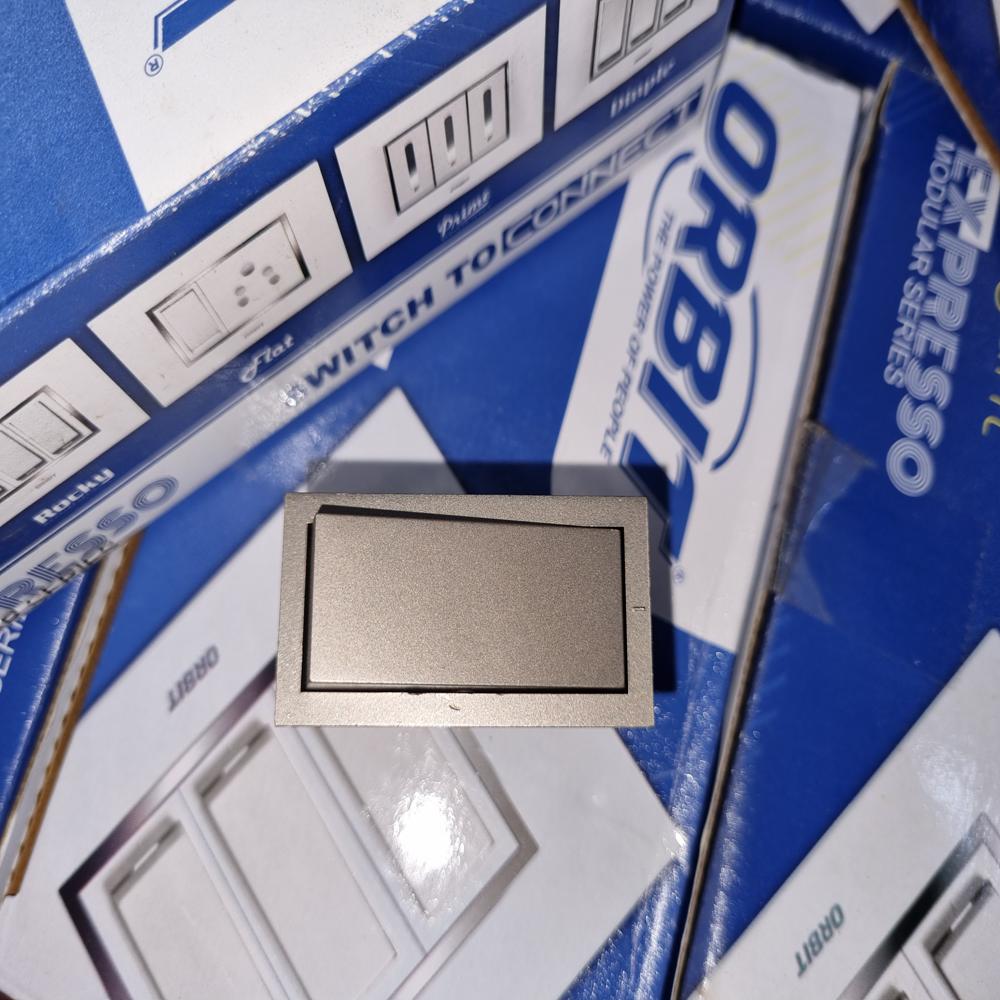

Orbit 10a switch

Name: Orbit 10a switch
Brand: Shri Hingulaj Marketing
Price: 17.0 INR
Availability: InStock

Price 17.0 INR/ Number

Get a Price/Quote

Orbit 10a switch Specification

Number of Module
1 Module

Protection Level
IP20

Circuit Type
Single Pole

Max. Current
10A

Finish Type
Glossy

Rated Voltage
240V AC

Response Time
Instantaneous

Temperature Range
-5C to 55C

Mechanical Life
More than 40,000 Operations

Automation Grade
Manual

Product Type
Modular Switch

Material
Polycarbonate Body with Brass Contacts

Insulation Resistance
Greater than 200 M at 500V DC

Contact Resistance
Less than 20 m

Max. Voltage
250V AC

Operating Temperature
-5C to 55C

Stoke
Smooth, Soft Click Mechanism

Size
86mm x 86mm (Plate Size)

Color
White

Weight
Approx. 35 grams

Mounting Type
Flush Mount

Current Rating
10A

No Of Poles
1

Suitable For
Residential, Commercial & Institutional Use

Back Connection Type
Screw Terminal

UV Resistance
Yes

Power Frequency
50Hz

Panel Thickness Compatibility
1mm - 3mm

Contact Material
Phosphor Bronze with Silver Tip

Flame Retardant
Yes

Environmental Safety
RoHS Compliant

Dielectric Strength
Greater than 2 kV for 1 minute

Orbit 10a switch Trade Information

Minimum Order Quantity
10 Number

Delivery Time
2 Days

About Orbit 10a switch

Key Specifications & Features

Rated current: 10 A (suitable for normal household lighting loads and small appliances) as listed.

Number of ways: 1-Way (i.e., a single circuit control) per the listing.

Module size / mechanical format: One module (1 M) in the modular switchboard system for this variant.

Series & brand: Orbit Express Modular series by Orbit Switch India Pvt Ltd.

Colour & finish: White finish typical for the standard model.

Dimensions (approximate): Listed as 5 cm 4 cm 2 cm in one listing.

Additional features: Some variants list with indicator (i.e., a small LED or neon to show switch is on) in their listing. For example: 10 A 1 Way Switch With Indicator.

---

Typical Use & Considerations

Suitable for controlling a single lighting circuit (or small appliance) where a 10 A switch is sufficient (for example: room light, fan, small fixture) in a standard residential or commercial wiring setup.

The modular size (1 M) means it fits into standard modular plate systems widely used in India. Makes it suitable for replacing older switches or wiring into new plates.

Because it is from a recognised brand (Orbit) and in a modular series, it may be good for installations where you want uniform accessories, and possibly ease of future maintenance or upgrades.

In a South Indian / Chennai / Tamil Nadu context: since the environment can be humid/coastal, ensure the installation is done neatly, wiring is correct, and the switch fits flush with the face plate for best longevity and appearance.

---

Things to Verify / Before Purchase & Installation

Ensure that 10 A rating is adequate for the load you intend to switch. If you are controlling a heavier load (e.g., large air-conditioner indoor unit, heavy motor, high-wattage appliance) you may need a higherrated switch (16 A, 20 A etc).

Confirm that the wiring and switchboard behind it supports modular accessories and is compatible with the Express Modular series and the module format.

If the variant lists with indicator and you do (or do not) need the small LED/neon indicator, verify exactly the model you are buying (some may be without indicator).

Ensure the finish & colour match your existing wiring accessories (plates, sockets) if you want a uniform look. White is standard but there could be other finishes.

When installing: make sure the back-box is secure, wires are correctly terminated, the switch is aligned with the faceplate, no gaps or loose mounting a high quality accessory still depends on proper installation.

Buy from authorised distributor or trusted seller, to ensure you get genuine Orbit product with correct spec, warranty and quality control.

Ensure your local wiring practice in Chennai / Tamil Nadu (like earthing, cable size, hiding wires, moisture protection) is adhered to so the switch performs safely long-term.

---

Summary

The Orbit Express Modular 10 A 1-Way switch is a standard singlecircuit switch suited for general lighting or small appliance uses, with a modular format and brand backing. It offers good quality for normal residential wiring. As with all such accessories, check your load, installation conditions, compatibility with modular plates, and ensure correct wiring/installation for best result.

Designed for Versatile Applications

Whether outfitting homes, offices, or institutional spaces, the Orbit 10A switch delivers dependable performance. Its robust construction, compatibility with different panel thicknesses (1mm-3mm), and a unifying plate size make it an ideal solution where uniformity and reliability are required. The glossy finish and sleek white look complement modern interiors seamlessly.

Safety and Compliance Standards

Prioritizing user safety, this switch features a polycarbonate flame retardant body, dielectric strength greater than 2 kV, and insulation resistance over 200 M at 500V DC. RoHS compliance ensures environmentally friendly usage, while the IP20 rating confirms protection against basic intrusion. The design supports safe and secure operation in diverse environments.

Effortless Installation and Lasting Performance

The Orbit 10A switch adopts a screw terminal back connection and is compatible with flush mounting for quick and secure installation. Enjoy a smooth, soft click mechanism, and anticipate a mechanical life of more than 40,000 operations. Its brass contacts with silver tips guarantee excellent conductivity and extended service life, minimizing maintenance requirements.

FAQ's of Orbit 10a switch:

Q: How is the Orbit 10A switch installed?

A: The Orbit 10A switch is designed for flush mounting on compatible panels with a thickness of 1mm to 3mm. It uses a screw terminal back connection, which enables secure wiring for electricians and installers. The compact 86mm x 86mm plate ensures easy placement in standard switch boxes.

Q: What benefits does the flame retardant polycarbonate body provide?

A: The flame retardant polycarbonate material enhances the safety of the Orbit 10A switch by reducing the risk of fire propagation. This material not only increases durability but also makes the switch suitable for residential, commercial, and institutional settings that require high safety standards.

Q: Where is the Orbit 10A switch best used?

A: The Orbit 10A switch is suitable for indoor use in residential homes, commercial offices, and institutional buildings. Its IP20 protection, UV resistance, and high dielectric strength ensure reliable and safe performance in well-ventilated, non-moist environments across India.

Q: What safety features make the Orbit 10A switch reliable?

A: Key safety features include dielectric strength over 2 kV for one minute, insulation resistance above 200 M at 500V DC, flame retardancy, RoHS compliance, and an IP20 protection level. These attributes safeguard users and make the switch compliant with rigorous safety standards.

Q: When should the Orbit 10A switch be considered for replacement?

A: Though the Orbit 10A switch boasts a mechanical life of over 40,000 operations, replacement is recommended if you notice any inconsistencies in the soft click, difficulties in operation, or visible wear on the body or terminals to maintain optimal electrical safety.

Q: What type of electrical loads can the Orbit 10A switch handle?

A: This switch is rated for maximum voltage up to 250V AC and a maximum current of 10A. It's designed for light to moderate electrical loads-typical for lighting circuits and small appliances within its rating limit in residences, commercial establishments, and institutions.

Q: How does the switch's construction ensure longevity and performance?

A: Quality materials such as a polycarbonate body, phosphor bronze contacts with a silver tip, and a robust flush mount design ensure the Orbit 10A switch withstands frequent use, environmental stress, and maintains reliable conductivity over thousands of cycles.
