Modular Switch

Step into the future with our Modular Switch, engineered for modern spaces and extraordinary performance. As a trusted trader and supplier with over 8 years of industry expertise, we bring you the ultimate selection at the lowest price. Designed for versatility, safety, and style, our range includes the sleek 10A White Modular Switch, sophisticated Black 1 Way Modular Switch, robust Black 10A Modular Switch, durable 20A 2 Way Modular Switch, and the functional Indicator Switch. Featuring excellent electrical durability, compact design, easy installation, advanced fire-resistant housing, and user-friendly operation, these switches redefine functionality. Compared to traditional options available in limited stock, our Modular Switches offer unparalleled reliability and adaptability for residential and commercial applications. Whether you need a new installation or an upgrade, these switches deliver ultimate efficiency and aesthetic appeal at the most competitive price. With innovation at the core, our Modular Switch lineup ensures you stay ahead in securing a safe environment while elevating your interior decor. Choose excellence and experience the extraordinary with switches that blend style and performance unlike any other.

10A White Modular Switch

MOQ : 100 Pieces

Automation Grade
Manual

Circuit Type
1 Way

Color
White

Contact Resistance
< 20 m

Current Rating
10 Ampere

Finish Type
Glossy

Insulation Resistance
> 2000 M at 500 V DC

Material
Polycarbonate (flame-retardant)

Max. Current
10A

Max. Voltage
250V AC

Mechanical Life
> 50,000 operations

Mounting Type
Flush/Wall mounting (modular plate compatible)

No Of Poles
Single Pole

Number of Module
1

Operating Temperature
-10C to +60C

Product Type
Modular Switch

Protection Level
IP20

Rated Voltage
250V AC

Response Time
Instant switching

Size
Standard modular, 1M

Stoke
Smooth, soft action

Temperature Range
-10C to +60C

Weight
Approx. 22g

Know more

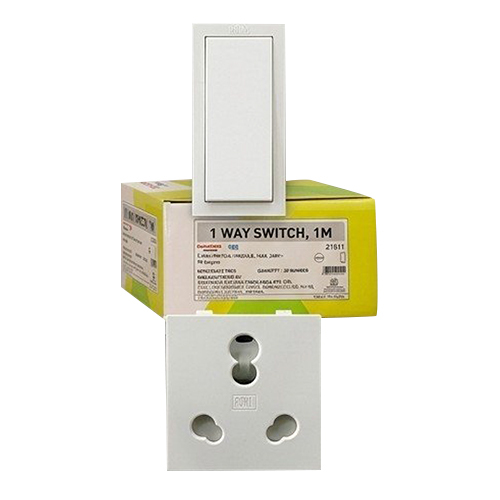

White 1 Way Modular Switch

MOQ : 100 Pieces

Automation Grade
Manual

Circuit Type
SPST (Single Pole Single Throw)

Color
White

Contact Resistance
10 m

Current Rating
10A

Finish Type
Glossy

Insulation Resistance
>2000 M at 500 V DC

Material
Polycarbonate (Housing), Copper (Contact)

Max. Current
10A

Max. Voltage
250V AC

Mechanical Life
>50,000 cycles

Mounting Type
Flush Mount / Wall Mount

No Of Poles
Single (1 Pole)

Number of Module
1 Module

Operating Temperature
-5C to 50C

Product Type
1 Way Modular Switch

Protection Level
IP20

Rated Voltage
250V AC

Response Time
Instantaneous

Size
Standard Modular (86mm x 86mm)

Stoke
Soft Action Switch

Temperature Range
-5C to 50C

Weight
Approx. 40 g

Know more

Black 1 Way Modular Switch

MOQ : 100 Pieces

Automation Grade
Manual

Circuit Type
Single Circuit

Color
Black

Contact Resistance
<10 m

Current Rating
6A

Finish Type
Matte

Insulation Resistance
>1000 M at 500V DC

Material
Polycarbonate (Front Plate), Brass (Contacts)

Max. Current
6A

Max. Voltage
250V AC

Mechanical Life
100,000 Operations Minimum

Mounting Type
Flush/Modular Mounting

No Of Poles
Single Pole

Number of Module
1 Module

Operating Temperature
-10C to 55C

Product Type
1 Way Modular Switch

Protection Level
IP20

Rated Voltage
250V AC

Response Time
Instantaneous

Size
Standard Modular (Approx. 86mm x 86mm x 34mm)

Stoke
Smooth Rocker Mechanism

Temperature Range
-10C to 55C

Weight
Approx. 50g

Know more

Black 10A Modular Switch

MOQ : 100 Pieces

Automation Grade
Manual

Circuit Type
Single Circuit

Color
Black

Contact Resistance
<20 m

Current Rating
10 Ampere

Finish Type
Matte

Insulation Resistance
>100 M at 500V DC

Material
Polycarbonate (PC) Housing

Max. Current
10A

Max. Voltage
250V AC

Mechanical Life
100,000 operations min.

Mounting Type
Flush Mount / Wall Mounted

No Of Poles
Single Pole

Number of Module
1 Module

Operating Temperature
-5C to 45C

Product Type
Modular Switch

Protection Level
IP20

Rated Voltage
250V

Response Time
Instantaneous

Size
Standard 1 Module

Stoke
Smooth Operation

Temperature Range
-5C to 45C

Weight
Approx. 20g

Know more

White Regular Switch

MOQ : 100 Pieces

Automation Grade
Manual

Circuit Type
1 Way

Color
White

Contact Resistance
20 m

Current Rating
10 Ampere

Finish Type
Glossy

Insulation Resistance
100 M at 500 V DC

Material
Polycarbonate & Copper

Max. Current
10 A

Max. Voltage
250 V AC

Mechanical Life
>50,000 Operations

Mounting Type
Flush / Wall Mounted

No Of Poles
Single Pole

Number of Module
1 Module

Operating Temperature
-5C to +55C

Product Type
Electrical Wall Switch

Protection Level
IP20

Rated Voltage
250 V

Response Time
Instant

Size
86 mm x 86 mm (approx.)

Stoke
Smooth Switching Stroke

Temperature Range
-5C to +55C

Weight
Approx. 60 g

Know more

Indicator Switch

MOQ : 100 Pieces

Automation Grade
Manual

Circuit Type
Single Circuit

Color
Red

Contact Resistance
50m

Current Rating
10A

Finish Type
Glossy

Insulation Resistance
100M (500V DC)

Material
Polycarbonate, Brass, Silver Contacts

Max. Current
10A

Max. Voltage
250V AC

Mechanical Life
100,000 cycles

Mounting Type
Panel Mount

No Of Poles
1 Pole

Number of Module
1 Module

Operating Temperature
-25C to +55C

Product Type
Indicator Switch

Protection Level
IP65

Rated Voltage
230V AC

Response Time
20ms

Size
22 mm (mounting diameter)

Stoke
6 mm

Temperature Range
-25C to +55C

Weight
18g

Know more

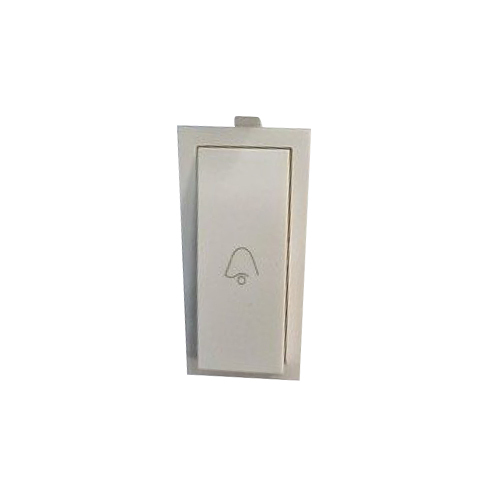

Call Bell Switch

MOQ : 100 Pieces

Automation Grade
Manual

Circuit Type
One Way

Color
White

Contact Resistance
Less than 50 m

Current Rating
10A

Finish Type
Glossy

Insulation Resistance
More than 100 M at 500V DC

Material
Polycarbonate Body

Max. Current
10A

Max. Voltage
250V AC

Mechanical Life
More than 50,000 Operations

Mounting Type
Flush Mounting

No Of Poles
Single Pole

Number of Module
1 Module

Operating Temperature
-10C to 55C

Product Type
Call Bell Switch

Protection Level
IP20

Rated Voltage
250V AC

Response Time
Instantaneous

Size
86 mm x 86 mm

Stoke
Smooth push mechanism

Temperature Range
-10C to 55C

Weight
Approx. 45g

Know more

20A 2 Way Modular Switch

MOQ : 100 Pieces

Automation Grade
Manual

Circuit Type
2 Way

Color
White

Contact Resistance
10 m

Current Rating
20A

Finish Type
Matte

Insulation Resistance
>2000 M at 500V DC

Material
Polycarbonate (Flame Retardant)

Max. Current
20A

Max. Voltage
250V AC

Mechanical Life
>100,000 operations

Mounting Type
Flush/Wall Mount

No Of Poles
Single Pole

Number of Module
1 Module

Operating Temperature
-10C to 55C

Product Type
20A 2 Way Modular Switch

Protection Level
IP20

Rated Voltage
250V AC

Response Time
Instantaneous

Size
Standard modular (approx. 86mm x 42mm)

Stoke
35,000 operations minimum

Temperature Range
-10C to 55C

Weight
approx. 45g

Know more
